DSM Demolition - Abrasive Water Jet Cold Cutting Provides Fast and Safe Access to Gasometers


The Challenge

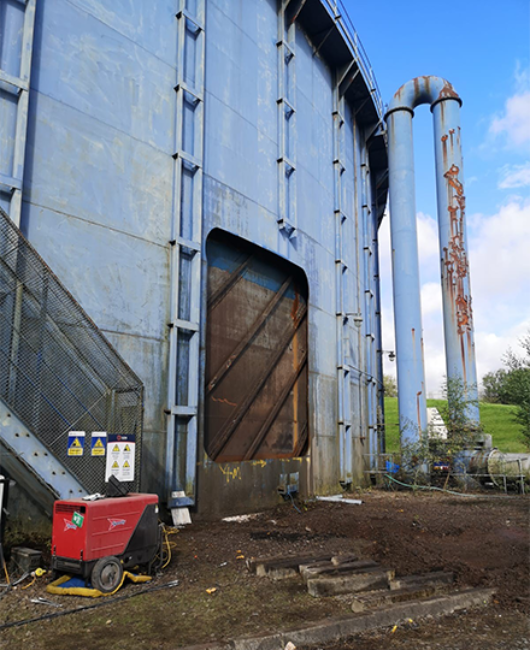

As part of a decommissioning programme at Provan Gas Works, RGL’s customer was tasked with the demolition of the spiral-guided gasometer.

Over 60 metres in diameter and once home to 144,000 m3 of gas, these steel structures have been an industrial landmark in Glasgow’s East End for over a century.


The Solution

Water jet cutting proved an ideal solution to this complicated challenge. Using UHP water jetting ensures our process poses no risk of combustion in this hazardous environment.

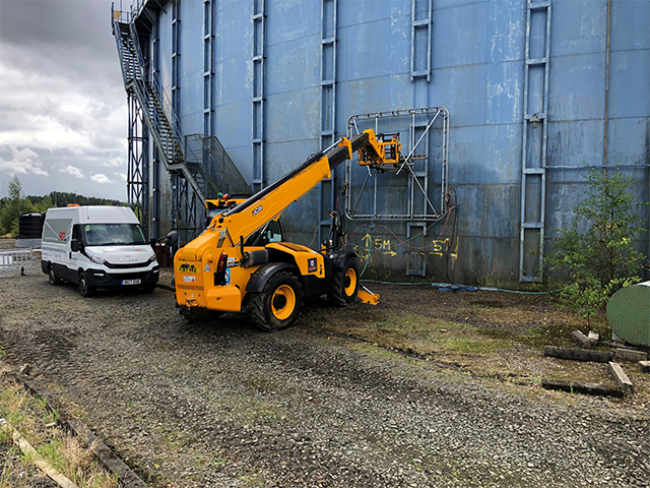

RGL’s experience enabled the in-house engineering team to design and build a custom rig. Once in place the bespoke cutting system offered major advantages over more conventional methods.

Once the cuts had been made, the panels were safely removed. RGL cut both opening on time and to budget, enabling DSM's conventional demolition crews to begin work safely.

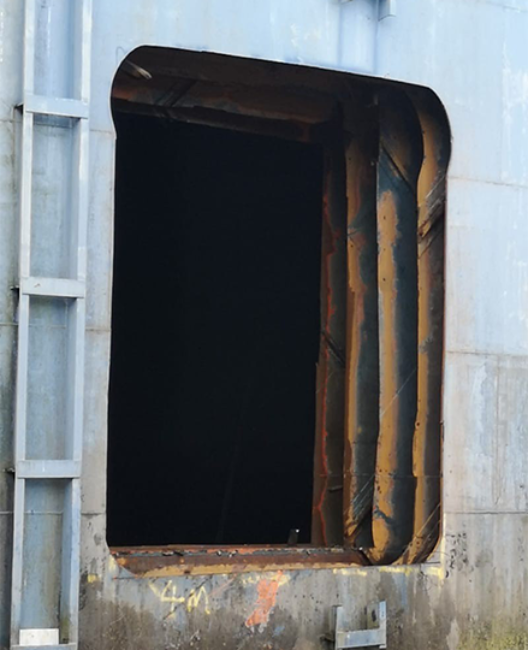

AWJCC-Steel-Proven-Gas-Works-10495-Gas-Holder-Robot-Rig-Cutting-Glasgow-2020-5-skins-complete.png

Benefits to the process were:

  • The use of two cutting nozzles at the same time considerably reduced the time taken to cut each opening.
  • As the equipment had been specially designed for this task, once set up each cut could be made precisely and without any further intervention or adjustments . Further reducing the set-up and cutting time.
  • The precision abrasive water jet system was able to accurately cut thorough the 5-layer side sheets, which were up to 35mm in thickness.
  • Using RGL’s semi-automatic UHP ‘Jetnife’ system, kept operators at a safe distance, from the hazards associated water jetting.
  • It maintained a safe environment, for all other contractors on-site to continue working, and bought considerable efficiency to the process.
